Small Size Maximum 8000rpm Harmonic Drive Reducer For Exoskeleton
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | Wanshsin |
| Πιστοποίηση: | ISO9001, CE, CCC |
| Αριθμό μοντέλου: | Wshg-25-100 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 κομμάτι |
|---|---|
| Τιμή: | Negotiable |
| Συσκευασία λεπτομέρειες: | Συσκευασία χαρτοκιβωτίων |
| Χρόνος παράδοσης: | 3-7 εργάσιμες ημέρες |
| Όροι πληρωμής: | L / C, T / T, Western Union |
| Δυνατότητα προσφοράς: | 10.000 κομμάτια το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Σειρά μεγέθους: | 14,17,20,25,32 | Άξονας παραγωγής: | Στερεά παραγωγή άξονων/κοίλη παραγωγή άξονων |
|---|---|---|---|
| Αναλογία μείωσης: | 50,80,100,120 | Ροπή παραγωγής: | 3.5Nm-160Nm |
| Εκτιμημένη ταχύτητα εισαγωγής: | 3000-3500rpm | Ρύθμιση συνοδοντώσεων τροχών: | Αρμονικός |
| Υλικό: | Ανοξείδωτο | Προσαρμογή: | Αποδεκτός |
| Υψηλό φως: | Exoskeleton Harmonic Drive Reducer,8000rpm Harmonic Drive Reducer,8000rpm Micro Harmonic Drive |
||
Περιγραφή προϊόντων

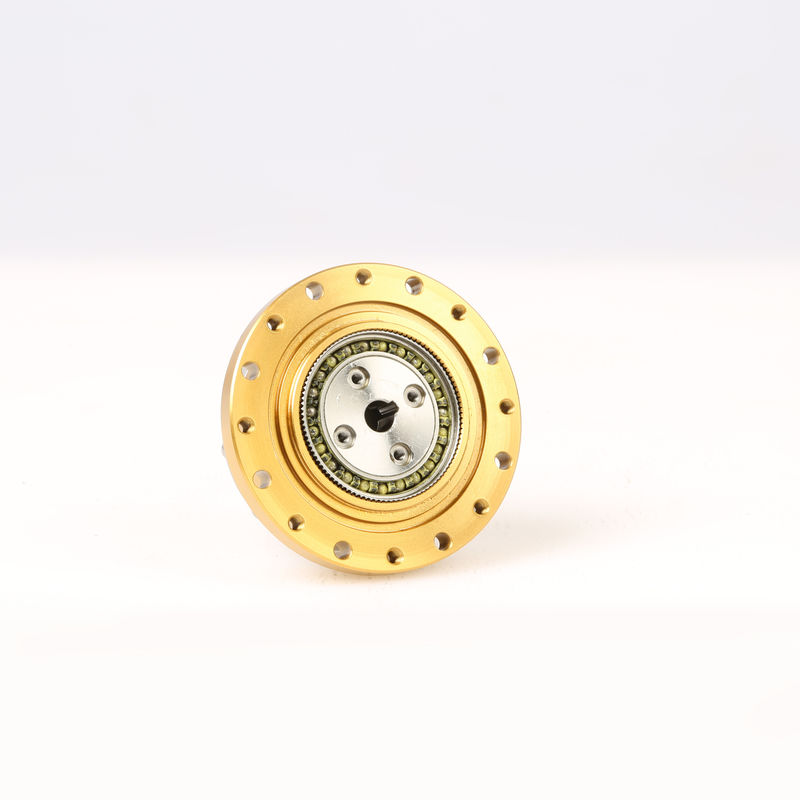

Harmonic Reducer Output Torque 3.5-160Nm Maximum Input Speed 8000rpm for Exoskeleton
PRODUCT FEATURESS
Advantages:
1. Simple structure, small size and light weight
Under the condition of the transmission ratio and load-bearing conditions, the harmonic gear drive can reduce the volume and weight of general gear reducers by about 1/3 to 1/2.
2. Large transmission ratio range
The transmission ratio of the single-stage harmonic reducer can reach 50-160 (if planetary wave generator is used, the transmission ratio can be expanded to 150-4000).
The transmission ratio of the compound transmission can be higher.
3. There are many pairs of teeth meshing at the same time
The number of teeth meshed simultaneously by the dual-wave harmonic reducer can reach 30% or more. In the ordinary gear transmission, the number of teeth meshed at the same time is only 2-7%, and the number of teeth meshed at the same time for a straight cylindrical involute gear is only 1-2 pairs. It is precisely because of the unique advantage of a large number of meshing teeth at the same time that the harmonic transmission has a high precision and a large load-bearing capacity of the teeth, thereby achieving a large speed ratio and a small volume.
Harmonic drive reducer is a kind of gear transmission which relies on the wave generator equipped with flexible bearing to make the flexible gear produce controllable elastic deformation and mesh with the rigid gear to transmit motion and power.
| Model | Ratio | Rated Torque When Input 2000r/min | Maximum Allowed Torque for Starting and Stopping |
Maximum Allowed Average Load Torque |
Maximum Allowed Instantaneous Torque | Maximum Allowed Input Speed | Arcsec |
Lifespan (hours) |
| WCSF | 50-120 | 5.4-137 | 18-353 | 6.9-216 | 35-686 | 4500-8000 | 10-20 | 10000-15000 |
| WCSG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
| WCSD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
